Flow Control, Zero Compromise
From municipal water to industrial flow systems — total reliability starts here.
From deep wells to pipelines and wastewater treatment, Norite delivers efficiency, durability, and trust in every drop.
- 5-Year Warranty
- ISO 9001 Certified
- 24/7 Support

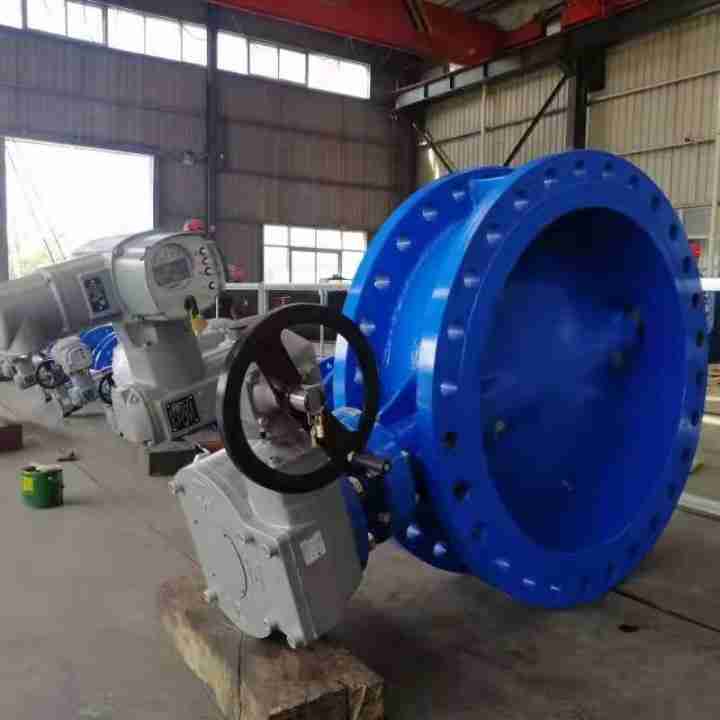

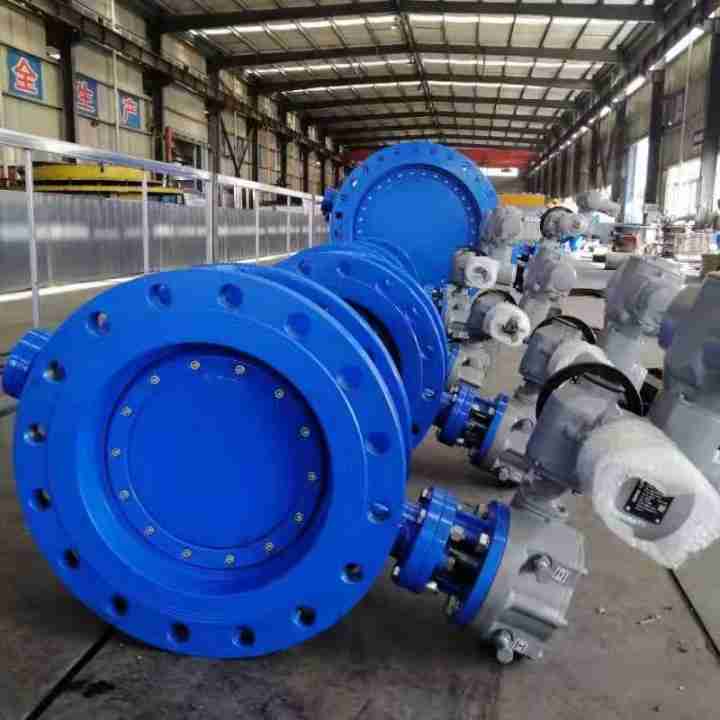

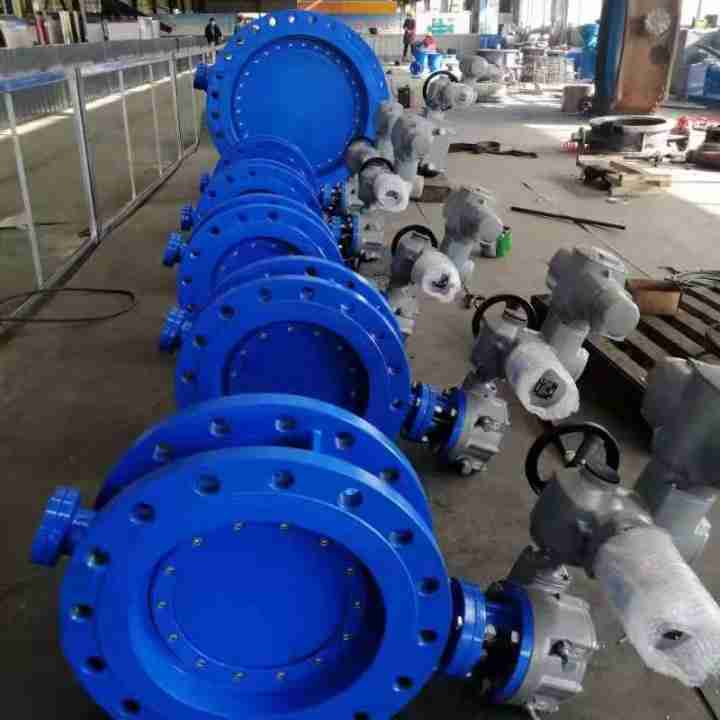

Triple Eccentric Butterfly Valve
Triple Eccentric Design for Tight Sealing with Low Torque
Disc disengages from the seat quickly when opening and ensures tight peripheral sealing upon closing — achieving bidirectional zero leakage with significantly reduced torque.
Multi-layer Metal Seal for Harsh Conditions
Engineered with multi-level metal sealing rings to ensure reliable performance in high-temperature, high-pressure, and corrosive environments.
High Flow Capacity with Low Pressure Loss
Streamlined flow path provides low resistance and high flow coefficient (Cv), approximately three times that of conventional valves of the same size.
Self-cleaning Operation for Extended Lifespan
Non-friction opening/closing minimizes seat wear and enables self-cleaning, contributing to long-term reliability.
Actuator-ready for Flexible Automation
Compatible with standard pneumatic or electric actuators, enabling seamless integration with automated control systems.
Need custom specifications? Our engineers are ready to help.
Call: +86 15090163952 | Email: lisa@noritesolution.com
Proven Results That Drive Your Bottom Line
Real performance data from our Valve installations across critical industries worldwide
100% Pressure Tested
Tested under Class A sealing standard, across 10,000+ units.
20+ Years Lifespan
Proven performance in seawater, wastewater, and high-pressure pipelines.
8,000+ Valves Installed
Including power plants, municipal water systems, and industrial zones.
99.5% On-Time Delivery
Backed by lean production and strict QC.
Certifications & Standards

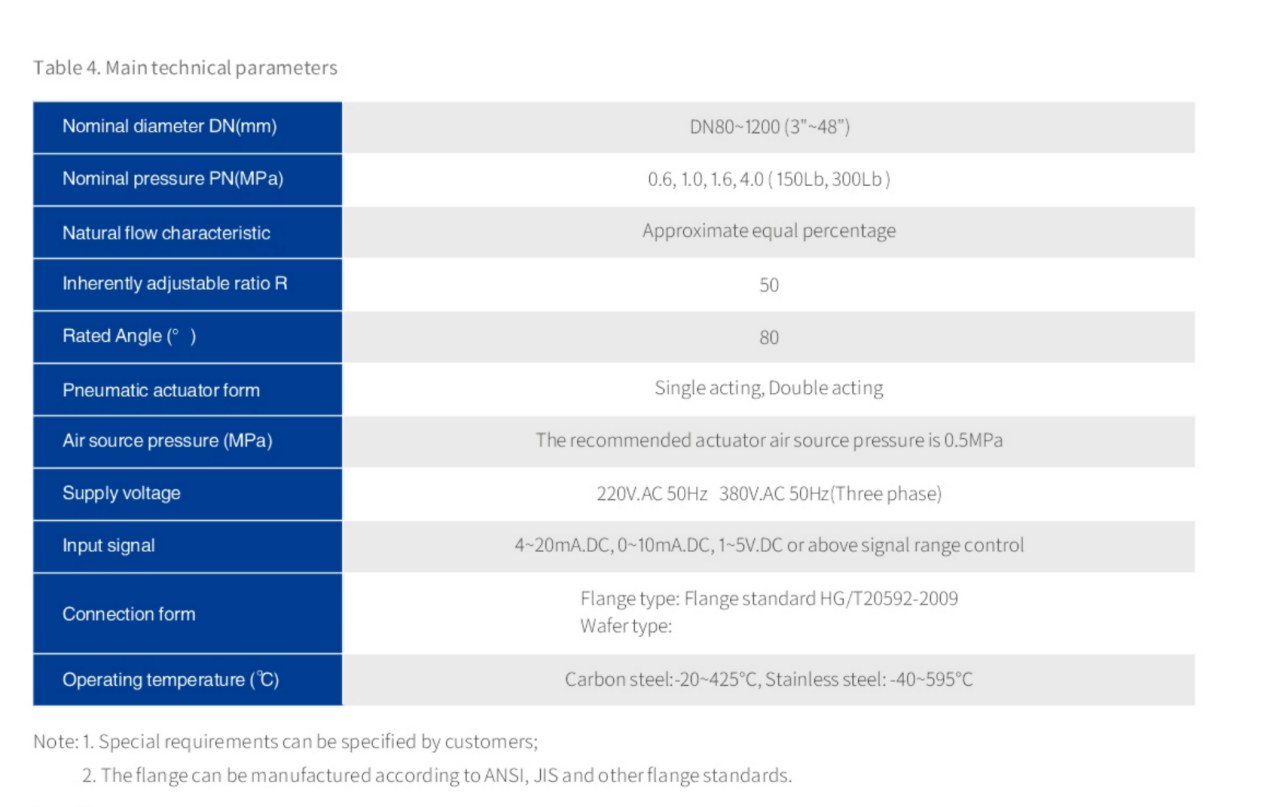

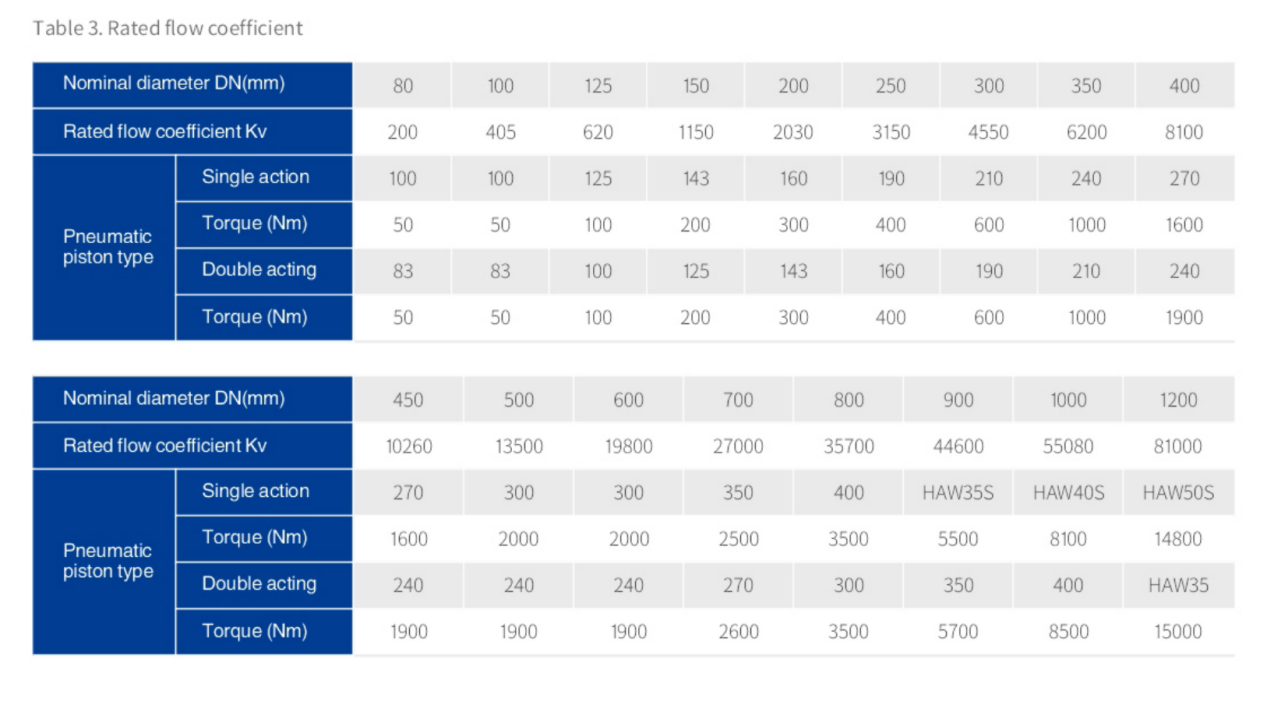

Technical Specifications
Engineered for optimal performance across a wide range of industrial applications
Model:
Size Range:
DN50 – DN2000 ,2”-80”
Pressure Rating:
Standards:
PN10-PN40;/150LB-600LB
EN 593,API609
Media:
Max Temperature:
Drinking water and neutral liquids
Body Material:
Wedge Material:
Carbon steel, stainless steel, alloy steel, low-temperature steel
Stem Material:
Sealing:
Stainless steel
Stainless steel, flexible graphite, PTFE
Connection:
Certifications:
Flanged to EN1092-2，ANSI B16.5,BS4504
- Application Conditions
Condensate water system of power plant
Suitable for condensate and boiler feedwater systems with high temperature and pressure.
Urban water supply and sewage treatment
Applied in waterworks, pumping stations, and wastewater treatment plants.
Petrochemical/refining systems
Withstands corrosive media and frequent cycling, ideal for refinery columns and reactor outlets.
Natural gas and gas transmission
Ensures safe shutoff and zero leakage in natural gas and fuel gas transmission lines.
The metallurgical and mining industry
Handles highly abrasive media such as slurry and pulverized coal in metallurgical and mining sectors.
Seawater desalination system
Corrosion-resistant design makes it suitable for seawater intake and brine discharge lines.
- Valve structure diagram

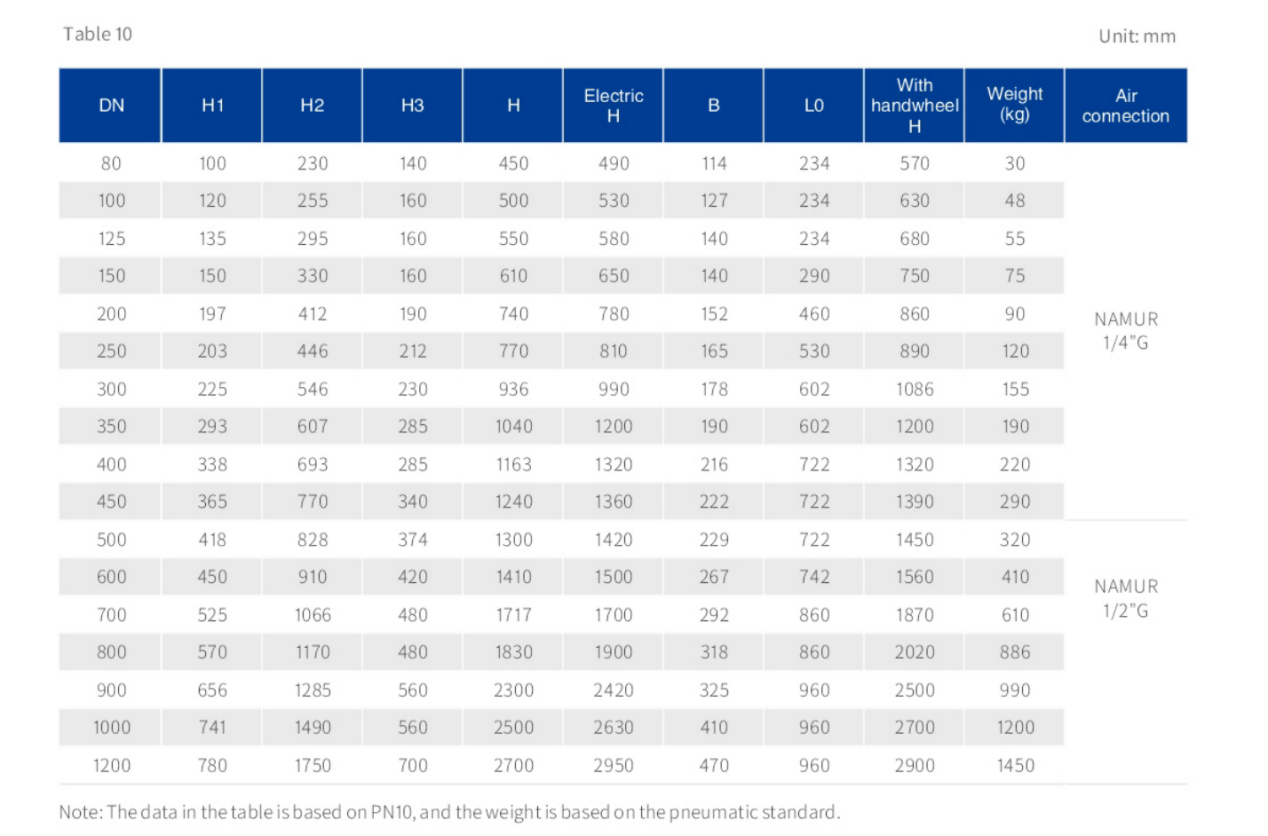

- Valve size data sheet
Testing Process
From raw materials to finished products, NORITE maintains 100% testing coverage, ensuring that every valve and pump you receive is built to last — safe, stable, and globally certified.
Pressure Testing
Each valve undergoes rigorous pressure and hydrostatic testing prior to shipment to verify body strength, sealing integrity, and pressure stability—ensuring zero leakage and long-term reliability in field operation.
Torque and Functional Testing
Confirming operating performance and precision.
Cycle Life Testing
Simulating long-term use under real working conditions.
Coating & Corrosion Resistance Testing
Validating surface protection and durability.
Dimensional & Material Analysis
Using spectrometers and coordinate measuring machines (CMM) for accuracy.
Traceability - Unique product code
Each product leaving our factory is accompanied by a full inspection report and a unique serial number, enabling full traceability and lifetime quality tracking.
Real Project Cases
Proven performance in critical applications worldwide – see our valves in action
A municipal water supply project in a certain area of Africa
- Africa
Customer/Owner: Ministry of Water Resources
- Working conditions/Challenges:
From 2018 to 2020, we provided valves, ductile iron pipe fittings to the Arusha Sustainable Urban Water Supply and Sanitation Delivery Project in Africa for three consecutive years, helping local residents improve their living conditions.
- The type of equipment adopted:
During this period, we provided electric triple eccentric butterfly valves with diameters of DN400, DN700, DN900 and DN1200 for the project, and equipped them with AUMA actuators. Currently, the project has been successfully delivered.
Get Your Custom Quote
Our technical experts will analyze your requirements and provide a tailored solution with detailed specifications and competitive pricing.
