H44X SWING CHECK VALVE WITH FREE SHAFT
Minimised Head Loss with Full-Bore Design
The full-bore valve body maximizes pump efficiency by minimizing fluid pressure loss.
Lightweight Disc with Low Operating Torque
The disc features a steel insert fully vulcanized with EPDM rubber for tight sealing and effortless operation.
Easy Maintenance Without Removing the Valve
The valve can be serviced by removing the bonnet, hinge, and disc without disconnecting the pipeline.
Durable Construction with Replaceable Components
Built with robust materials and replaceable spare parts to ensure long-term reliability and lower maintenance cost.
Pump Efficiency Focused Design
Engineered to reduce flow resistance and ensure optimal system performance.
Need custom specifications? Our engineers are ready to help.
Call: +86 15090163952 | Email: lisa@noritesolution.com
Proven Results That Drive Your Bottom Line
Real performance data from our Valve installations across critical industries worldwide
100% Pressure Tested
Tested under Class A sealing standard, across 10,000+ units.
20+ Years Lifespan
Proven performance in seawater, wastewater, and high-pressure pipelines.
8,000+ Valves Installed
Including power plants, municipal water systems, and industrial zones.
99.5% On-Time Delivery
Backed by lean production and strict QC.
Certifications & Standards
Technical Specifications
Engineered for optimal performance across a wide range of industrial applications
Model:
Size Range:
H44X
DN50 – DN600, 2”-24”
Pressure Rating:
Standards:
EN 594,AWWA C508,BS5153
Media:
Max Temperature:
Water and neutral liquids
Body Material:
Wedge Material:
EN-GJS-500-7 (GGG-50)
Ductile iron GJS-500-7 (GGG-50),SS304,SS316,
Aluminum bronze，Duplex stainless steel
Stem Material:
Sealing:
EPDM / NBR
Connection:
Certifications:
Flanged to EN1092-2，ANSI B16.5,BS4504
- Application Conditions
Water Supply & Wastewater Pipelines
The valve is used to prevent reverse flow and protect pump stations and pipeline equipment in water supply and wastewater collection systems.
Check at Pump Discharge & Circulation Systems
Installed at pump discharges or in circulation systems to ensure unidirectional flow and protect equipment from backflow.
Medium Temperature/Pressure Systems for Water, Steam, Oil
Suitable for systems with moderate temperature and pressure—such as water, steam or light oil transport.
Horizontal Installation in Space-Constrained Piping
Designed for horizontal pipeline installation—ideal for environments where space is limited.
Environments with Light Solids or Low Erosion Media
Reliable for environments with light suspended particles or low erosion media—such as domestic wastewater or circulation systems.

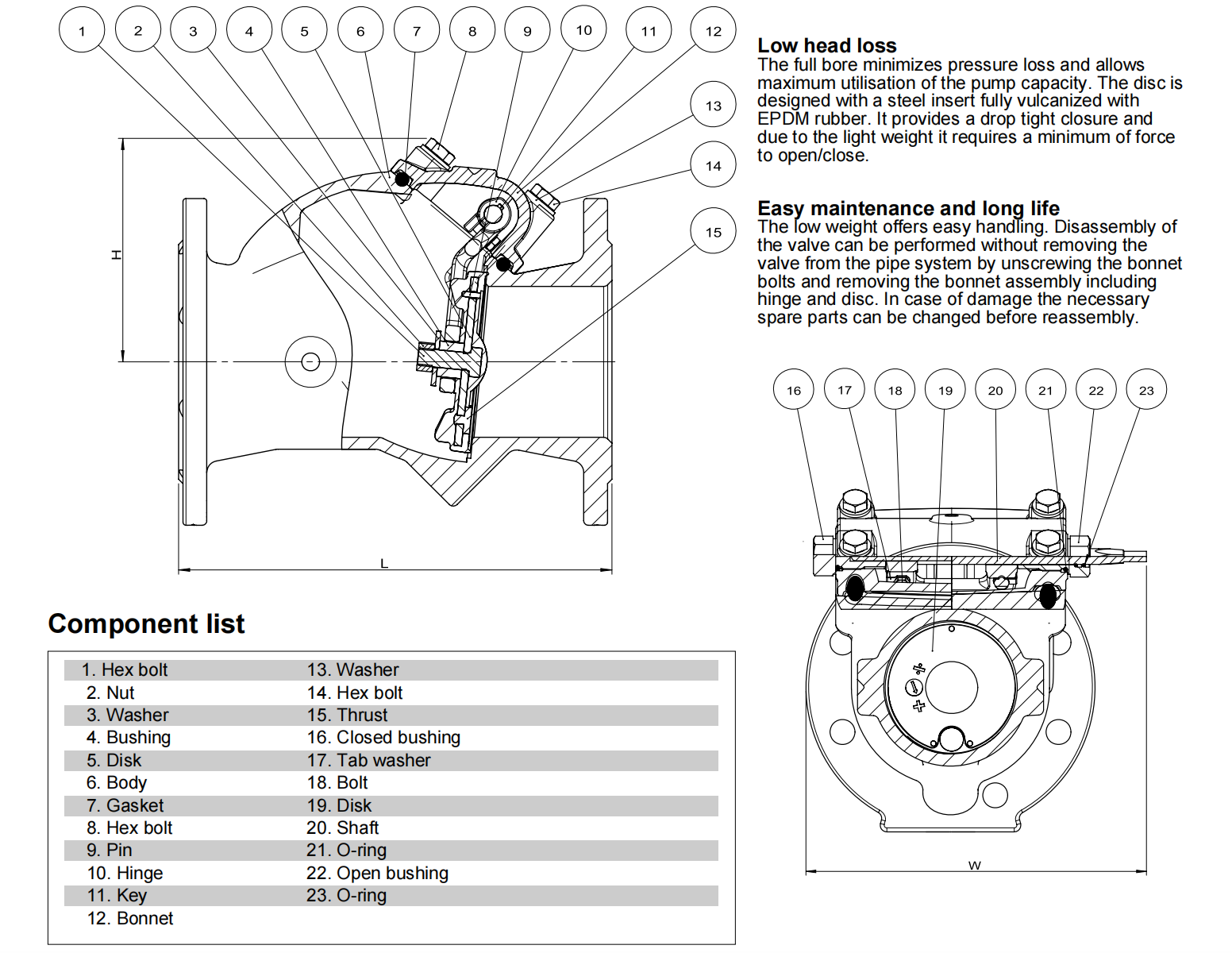

- Valve structure diagram

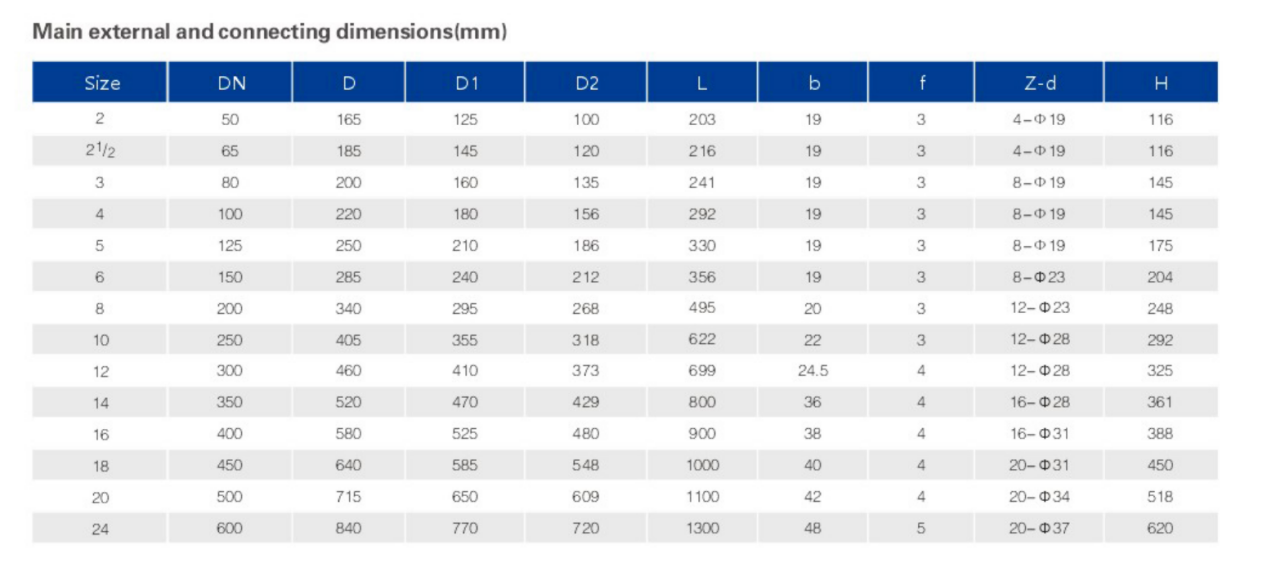

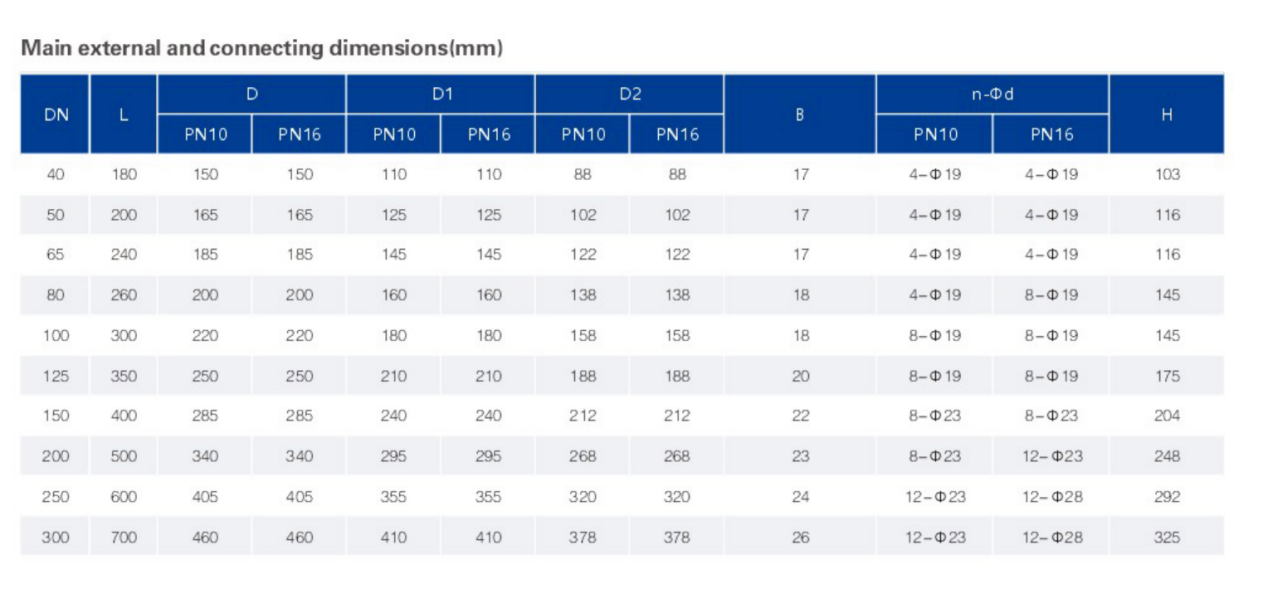

- Valve size data sheet
Testing Process
From raw materials to finished products, NORITE maintains 100% testing coverage, ensuring that every valve and pump you receive is built to last — safe, stable, and globally certified.
Pressure Testing
Each valve undergoes rigorous pressure and hydrostatic testing prior to shipment to verify body strength, sealing integrity, and pressure stability—ensuring zero leakage and long-term reliability in field operation.
Torque and Functional Testing
Confirming operating performance and precision.
Cycle Life Testing
Simulating long-term use under real working conditions.
Coating & Corrosion Resistance Testing
Validating surface protection and durability.
Dimensional & Material Analysis
Using spectrometers and coordinate measuring machines (CMM) for accuracy.
Traceability - Unique product code
Each product leaving our factory is accompanied by a full inspection report and a unique serial number, enabling full traceability and lifetime quality tracking.
Real Project Cases
Proven performance in critical applications worldwide – see our valves in action

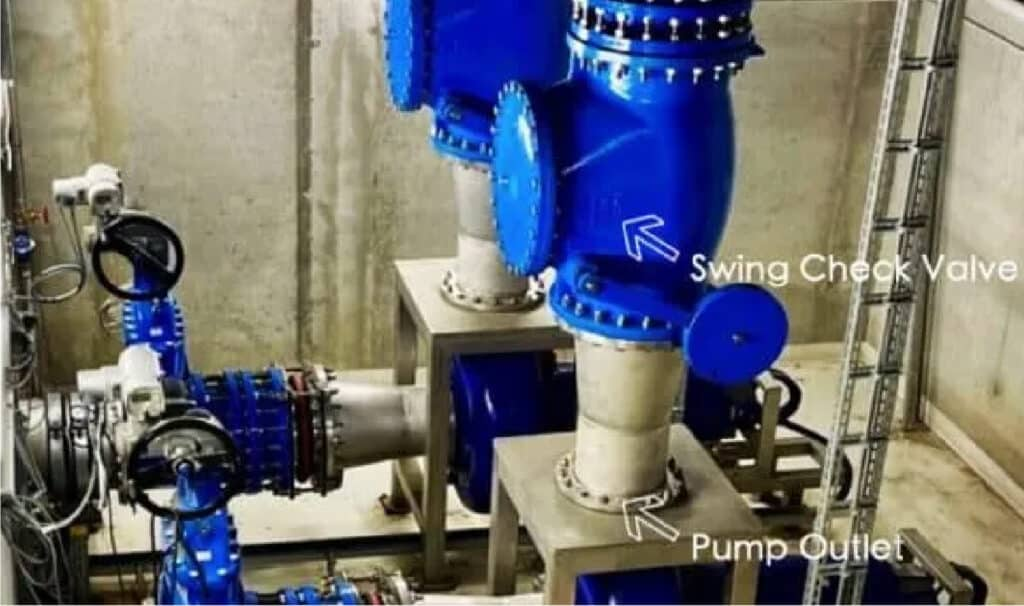

Tibidabo Pump Station
- Barcelona, Spain
Customer/Owner: Municipal pumping station in Barcelona, , Spain
- Working conditions/Challenges:
The pumping station is equipped with Swing Check Valve. Significant pressure shock was detected during the pump stop event, and the “valve closing impact” phenomenon was severe.
- The type of equipment adopted:
We provided a complete set of products including check valves, gate valves and joints for the upgrade of this pumping station system.
Key indicators: In water supply, sewage treatment and fire protection systems, Swing Check Valve are important components for preventing backflow and protecting pumping stations
