D71X Wafer Butterfly Valve
Compact & Lightweight for Fast Installation
Wafertype design is sandwiched between two flanges, reducing material and space requirements; ideal for tight installations.
Quarter-Turn Operation for Quick Actuation
The disc rotates just 90° to move from open to closed, enabling rapid response and efficient flow control.
Low Pressure Drop & Full Bore Design for High Efficiency
Designed for full bore, free-flow passage with no hollow cavities to trap debris, ensuring low pressure loss and hygienic performance.
Bi-Directional Sealing & Multi-Media Compatibility
Often designed for bi-directional sealing, these valves handle a wide range of media including water, gas and chemical fluids.
Cost-Effective & Easy Maintenance
With fewer components and simpler installation, wafer butterfly valves offer excellent value and lower lifecycle maintenance costs.
Need custom specifications? Our engineers are ready to help.
Call: +86 15090163952 | Email: lisa@noritesolution.com
Proven Results That Drive Your Bottom Line
Real performance data from our Valve installations across critical industries worldwide
100% Pressure Tested
Tested under Class A sealing standard, across 10,000+ units.
20+ Years Lifespan
Proven performance in seawater, wastewater, and high-pressure pipelines.
8,000+ Valves Installed
Including power plants, municipal water systems, and industrial zones.
99.5% On-Time Delivery
Backed by lean production and strict QC.
Certifications & Standards
Technical Specifications
Engineered for optimal performance across a wide range of industrial applications
Model:
Size Range:
D71X,D371X,D971X,D671X
DN50 – DN800,2”-32”
Pressure Rating:
Standards:
PN10/PN16，150LB，JIS 5K/10K
EN 593,BS 5155,API609,AWWA C504,JIS B2064
Media:
Max Temperature:
Water, Oil,Gas
Body Material:
Disc Material:
Gray iron,Ductile Iron, WCB, Stainless Steel，Aluminum bronze
Ductile iron core fully vulcanized with EPDM rubber
Stem Material:
Sealing:
Stainless steel,Bronze
EPDM / NBR/PTFE
Connection:
Certifications:
Flanged to EN1092-2，ANSI B16.5,BS4504
- Application Conditions
Municipal water supply and drainage systems
HVAC and chilled water systems
Water treatment and purification plants
Irrigation systems and pumping stations
Power plants, metallurgy, food processing, paper mills

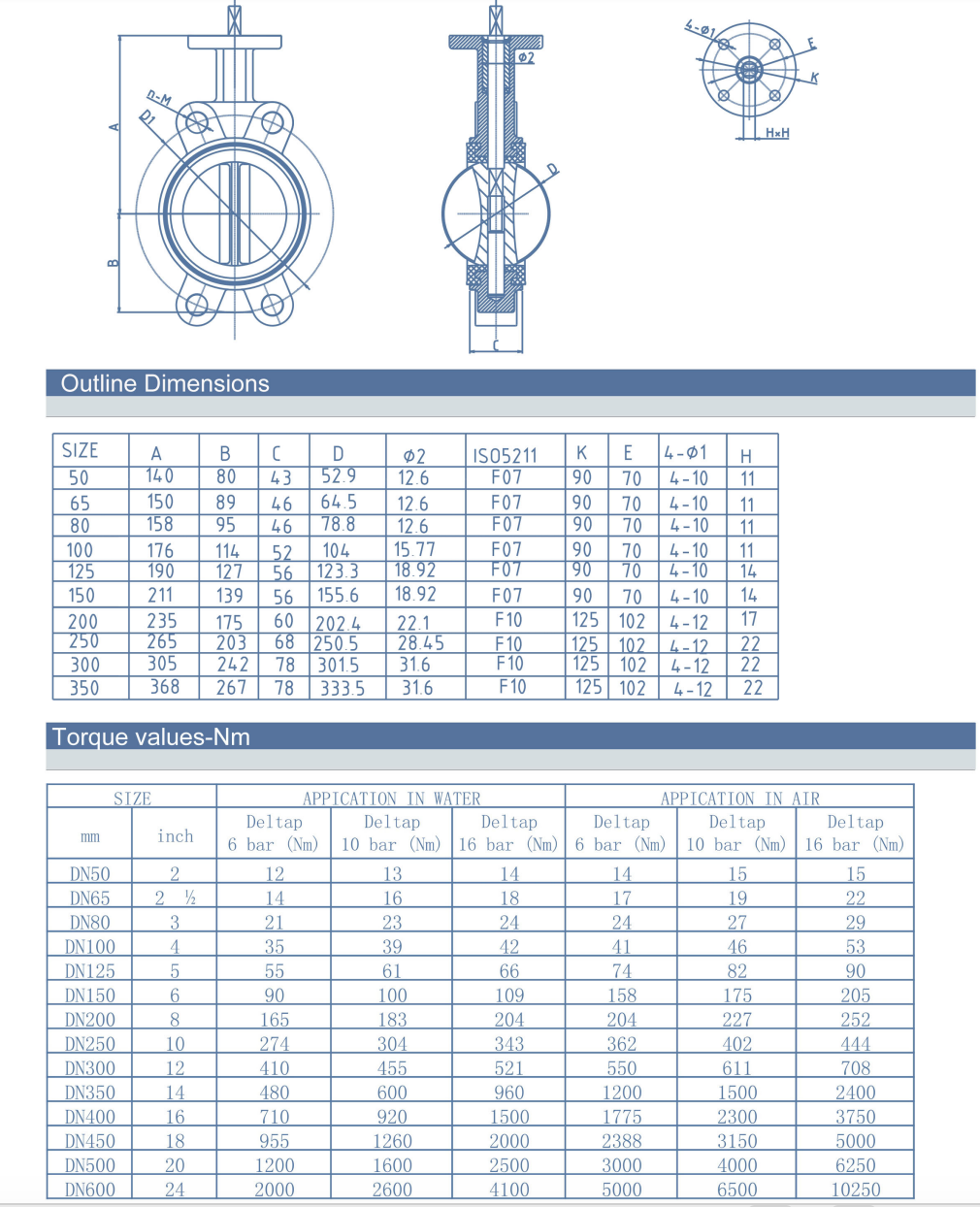

- Valve structure diagram
- Flow curve
- Valve size data sheet
Testing Process
From raw materials to finished products, NORITE maintains 100% testing coverage, ensuring that every valve and pump you receive is built to last — safe, stable, and globally certified.
Pressure Testing
Each valve undergoes rigorous pressure and hydrostatic testing prior to shipment to verify body strength, sealing integrity, and pressure stability—ensuring zero leakage and long-term reliability in field operation.
Torque and Functional Testing
Confirming operating performance and precision.
Cycle Life Testing
Simulating long-term use under real working conditions.
Coating & Corrosion Resistance Testing
Validating surface protection and durability.
Dimensional & Material Analysis
Using spectrometers and coordinate measuring machines (CMM) for accuracy.
Traceability - Unique product code
Each product leaving our factory is accompanied by a full inspection report and a unique serial number, enabling full traceability and lifetime quality tracking.
Real Project Cases
Proven performance in critical applications worldwide – see our valves in action
The Mlooka Irrigation Project
- Jakarta, Indonesia
Customer/Owner: Local contractor
- Working conditions/Challenges:
This project is a pumping station construction project for a city in Jakarta, the capital of Indonesia. We collaborated with local contractors and provided them with the products needed for the project, such as butterfly valves, gate valves, and exhaust valves.
- The type of equipment adopted:
Butterfly valve, Air valve, Gate valve,
Achievements/advantages: We delivered all the products on schedule and ensured that the project was completed and accepted on time.
