D341X Flanged Butterfly Valve
Robust Construction with Reliable Sealing
Ductile iron or carbon steel body with high-elastic EPDM/PTFE seat ensures zero leakage in both flow directions.
Versatile for Industrial and Municipal Applications
Standard flange ends (PN10/16 or ANSI Class150) allow easy integration into water plants, pumping stations, buildings, and process pipelines.
High Flow Capacity with Low Pressure Loss
Full bore design and precision-machined disc reduce flow resistance and enhance system efficiency, especially for large diameter pipelines.
Easy Operation with Multiple Actuation Options
Available with lever, gearbox, electric, or pneumatic actuators to suit various automation needs.
Excellent Corrosion Protection for Harsh Environments
Fusion bonded epoxy coating ≥250μm inside and outside; WRAS-approved coating and rubber available for long-term corrosion resistance and potable water safety.
Need custom specifications? Our engineers are ready to help.
Call: +86 15090163952 | Email: lisa@noritesolution.com
Proven Results That Drive Your Bottom Line
Real performance data from our Valve installations across critical industries worldwide
100% Pressure Tested
Tested under Class A sealing standard, across 10,000+ units.
20+ Years Lifespan
Proven performance in seawater, wastewater, and high-pressure pipelines.
8,000+ Valves Installed
Including power plants, municipal water systems, and industrial zones.
99.5% On-Time Delivery
Backed by lean production and strict QC.
Certifications & Standards
Technical Specifications
Engineered for optimal performance across a wide range of industrial applications
Model:
Size Range:
D341X,D41X,D941X,D641X
DN50 – DN1600,2”-64”
Pressure Rating:
Standards:
PN10/PN16，125LB/150LB，JIS 5K/10K
EN 593,BS 5155,API609,AWWA C504,JIS B2064
Media:
Max Temperature:
Water, Oil,Gas
Body Material:
Disc Material:
Gray iron,Ductile Iron, WCB, Stainless Steel，Aluminum bronze
Ductile iron ,SS304,SS316,Aluminum bronze，Duplex stainless steel
Stem Material:
Sealing:
Stainless steel,Bronze
EPDM / NBR/PTFE
Connection:
Certifications:
Flanged to EN1092-2，ANSI B16.5,BS4504
- Application Conditions
Municipal water supply and drainage systems
HVAC and chilled water systems
Water treatment and purification plants
Irrigation systems and pumping stations
Power plants, metallurgy, food processing, paper mills

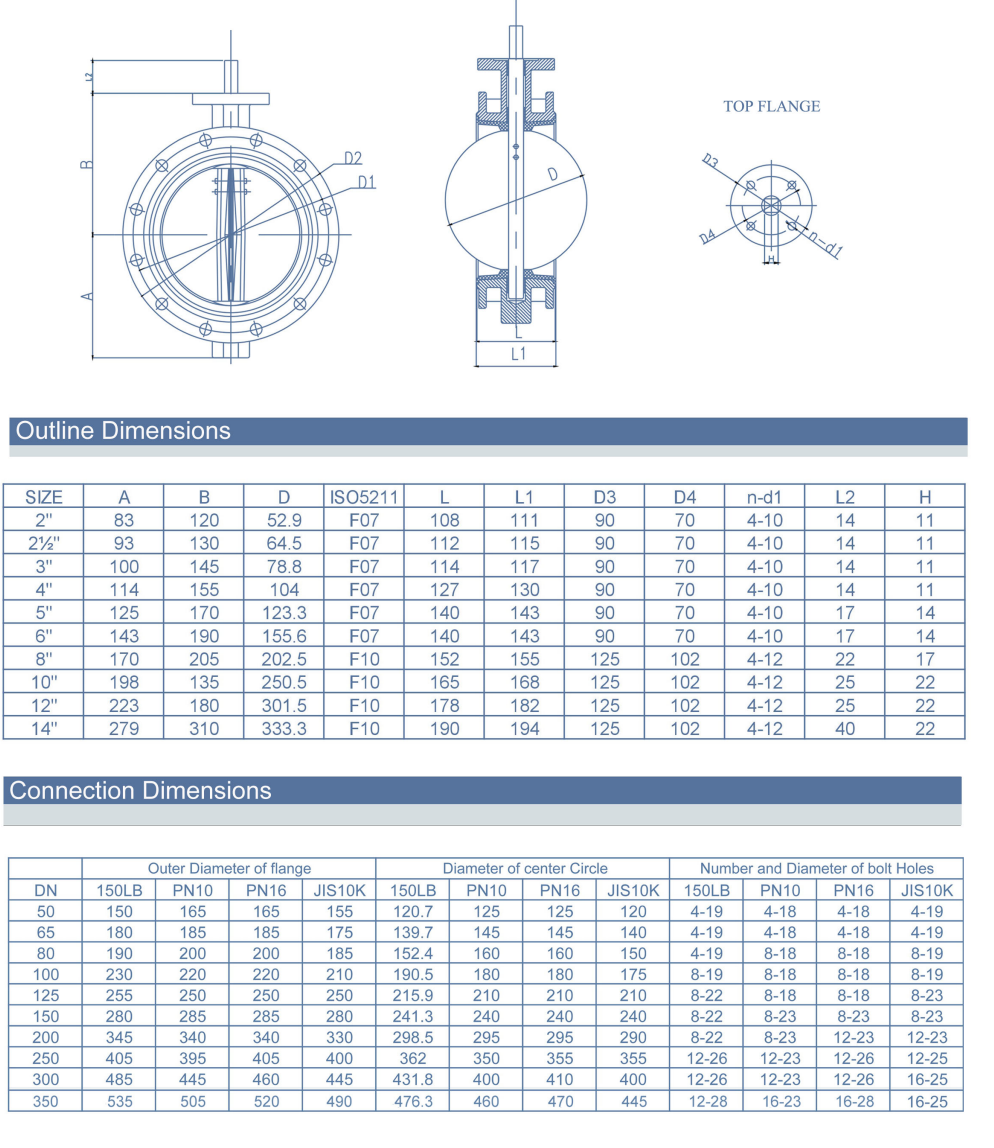

- Valve structure diagram

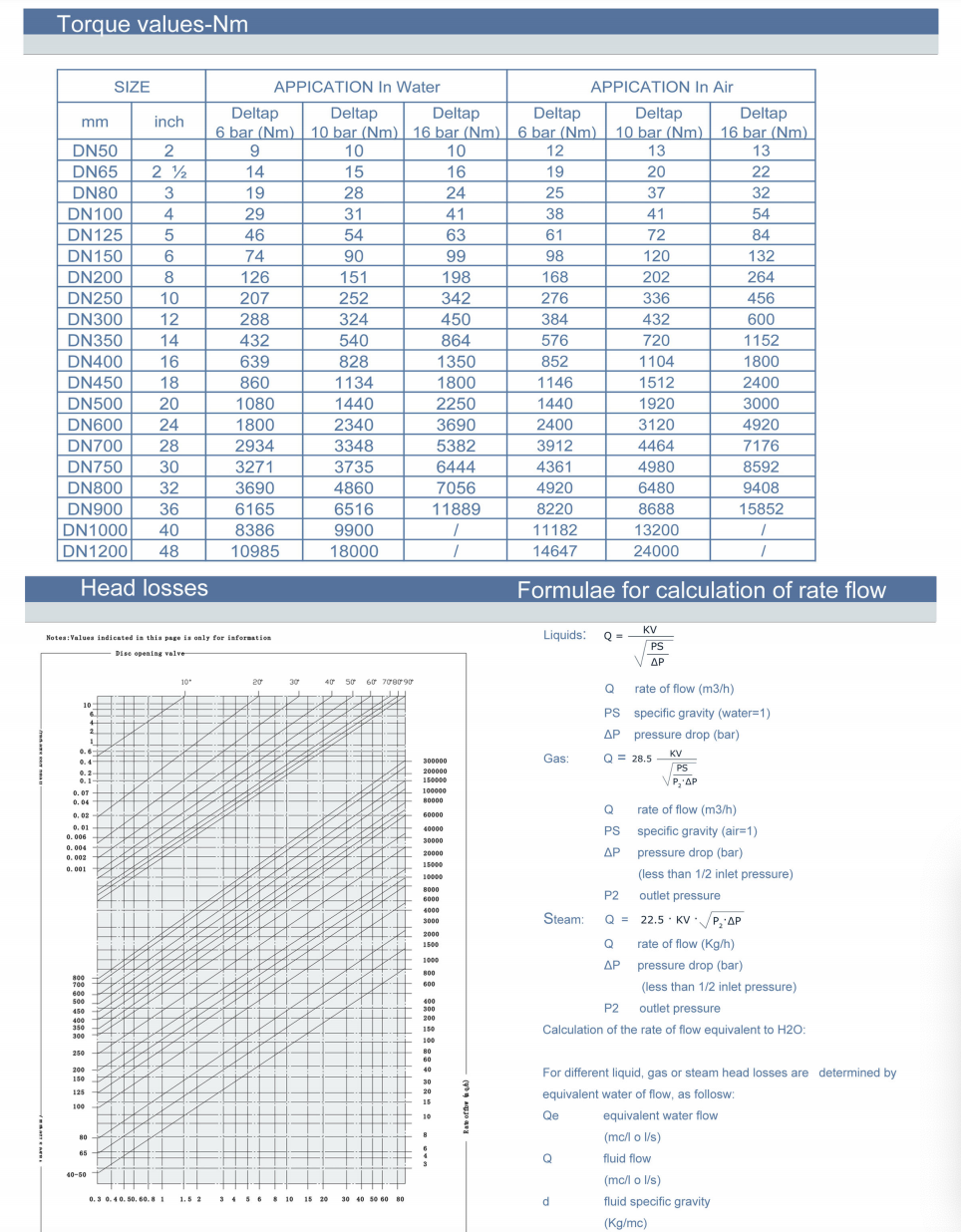

- Flow curve

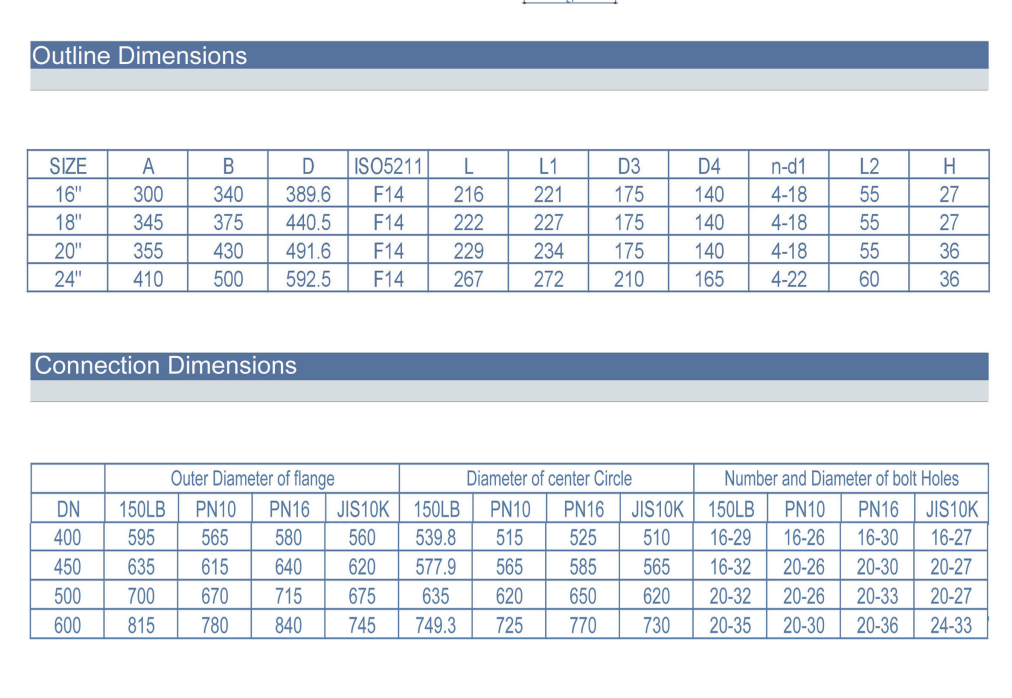

- Valve size data sheet
Testing Process
From raw materials to finished products, NORITE maintains 100% testing coverage, ensuring that every valve and pump you receive is built to last — safe, stable, and globally certified.
Pressure Testing
Each valve undergoes rigorous pressure and hydrostatic testing prior to shipment to verify body strength, sealing integrity, and pressure stability—ensuring zero leakage and long-term reliability in field operation.
Torque and Functional Testing
Confirming operating performance and precision.
Cycle Life Testing
Simulating long-term use under real working conditions.
Coating & Corrosion Resistance Testing
Validating surface protection and durability.
Dimensional & Material Analysis
Using spectrometers and coordinate measuring machines (CMM) for accuracy.
Traceability - Unique product code
Each product leaving our factory is accompanied by a full inspection report and a unique serial number, enabling full traceability and lifetime quality tracking.

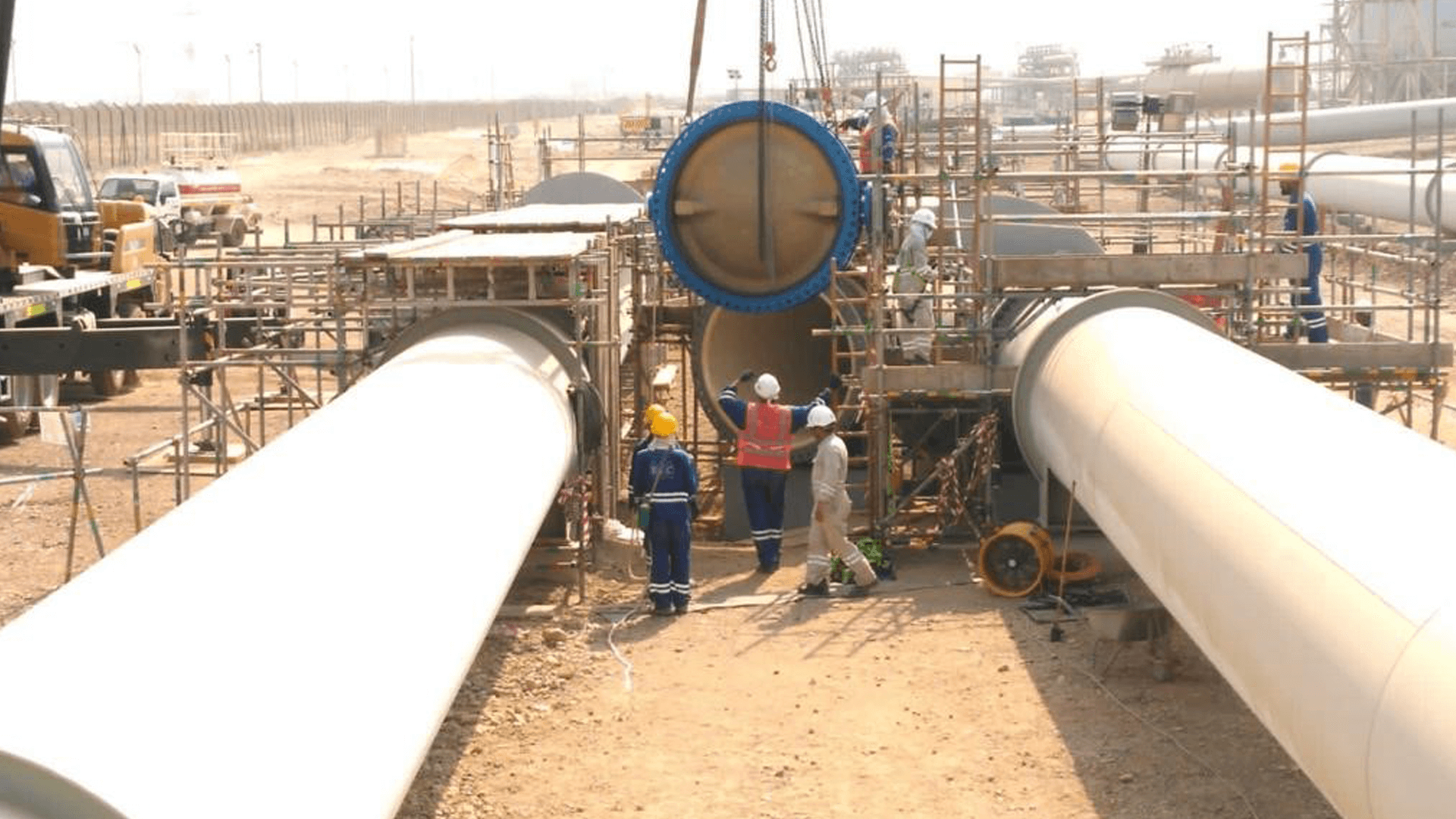

Real Project Cases
Proven performance in critical applications worldwide – see our valves in action
Hyperion Water Reclamation Plant
- Los Angeles, California, USA
Customer/Owner: Local contractor
- Working conditions/Challenges:
The wastewater treatment plant underwent a maintenance upgrade, involving the replacement or refurbishment of large-diameter butterfly valve equipment.
- The type of equipment adopted:
Butterfly valve
Achievements/advantages: Large butterfly valves with flange connections were used in the project for critical drainage pipes.
