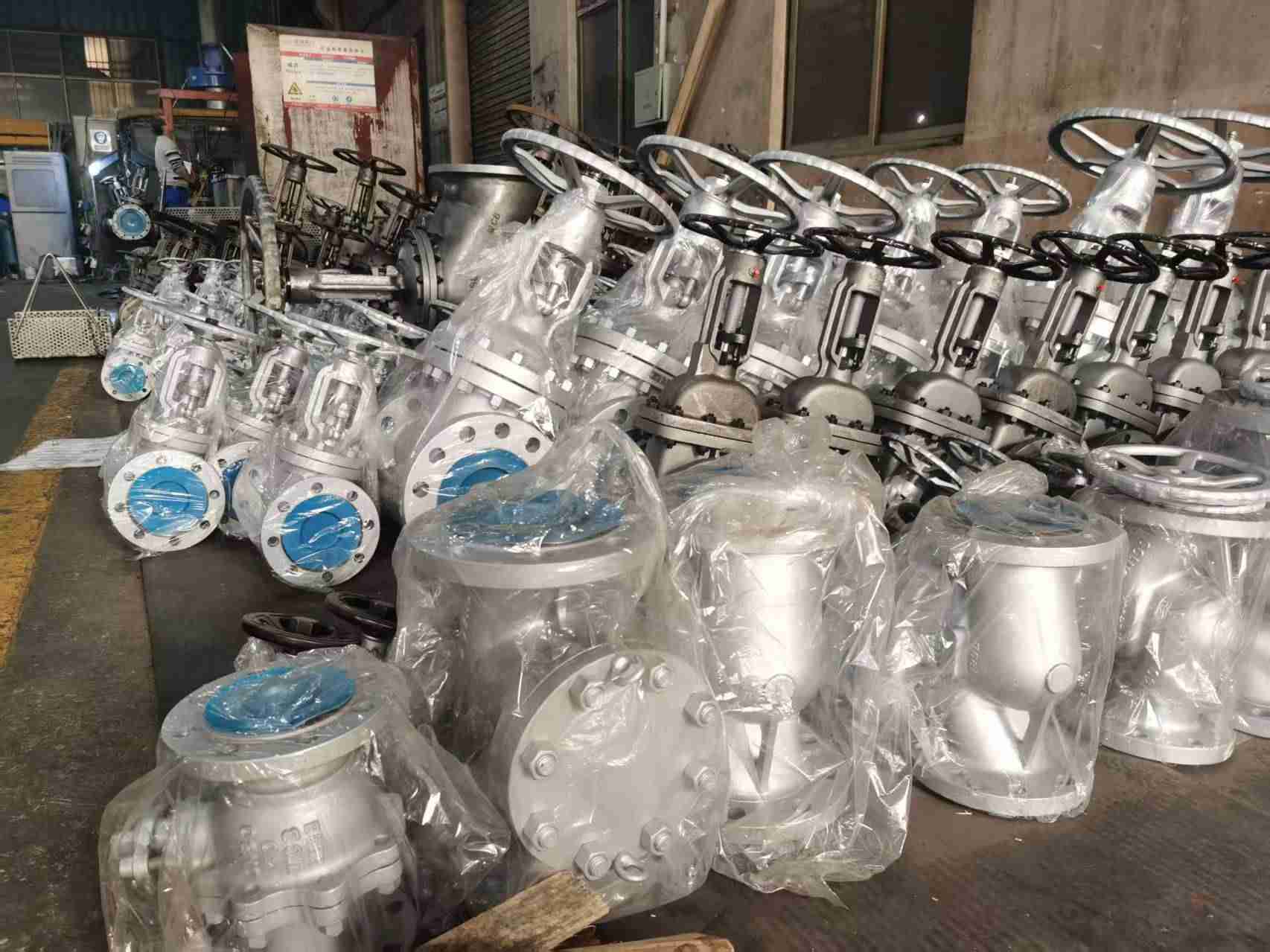

API GLOBE VALVE
Precise Flow Control with Minimal Leakage
The straight-through body design ensures tight seal between disc and seat, delivering precise throttling and reduced internal leakage.
Rugged Construction for Long Service Life
Built in accordance with API standards using pressure-resistant and fatigue-tolerant materials, ideal for frequent operation.
Easy Maintenance with Replaceable Components
Disc, seat, and stem are individually replaceable, simplifying maintenance and reducing operating costs.
Multiple Actuation Options
Compatible with manual, electric, pneumatic, or hydraulic actuators to suit various levels of automation.
Engineered for Harsh Environments
Optional corrosion-resistant linings and special alloys available for acid, steam, high-temperature, or high-pressure service.
Need custom specifications? Our engineers are ready to help.
Call: +86 15090163952 | Email: lisa@noritesolution.com
Proven Results That Drive Your Bottom Line
Real performance data from our Valve installations across critical industries worldwide
100% Pressure Tested
Tested under Class A sealing standard, across 10,000+ units.
20+ Years Lifespan
Proven performance in seawater, wastewater, and high-pressure pipelines.
8,000+ Valves Installed
Including power plants, municipal water systems, and industrial zones.
99.5% On-Time Delivery
Backed by lean production and strict QC.
Certifications & Standards
Technical Specifications
Engineered for optimal performance across a wide range of industrial applications
Model:
Size Range:
J41H,J941H,J641H
DN15 – DN600,1/2”-24”
Pressure Rating:
Standards:
150LB- 2500LB
API623
Media:
Max Temperature:
Water, Oil, Gas
Body Material:
Wedge Material:
A216 GR.WCB, Alloy steel, SS304, SS316
Ductile iron core fully vulcanized with EPDM rubber
Stem Material:
Sealing:
Stainless steel
Stainless steel
Connection:
Certifications:
Flanged to ASME B16.5,ASME B16.47
- Application Conditions
Oil & Gas Industry
Widely used in crude oil gathering stations, oil-gas separators, and pipeline transport systems, the API globe valve controls the start-stop and flow regulation of oil and gas media. Its corrosion and erosion resistance makes it suitable for high-pressure, high-temperature, and aggressive environments.
Power Generation & Energy Systems
Installed in boiler feedwater systems, steam pipelines, and cooling water circuits of thermal power plants and cogeneration facilities. The valve regulates high-temperature steam and cooling flows, ensuring safe and stable system performance.
Chemical & Fine Chemical Processing
Used in acid/alkali transportation, solvent control, and reactor inlet/outlet applications. The valve offers precise metering and flow regulation. Optional PTFE lining or Hastelloy materials are available for highly corrosive environments.
Water Treatment & Environmental Systems
Employed in urban water supply networks, wastewater treatment plants, and greywater recycling systems. The globe valve effectively regulates clean or contaminated water, featuring excellent sealing and anti-scaling properties.
General Industrial & HVAC Systems
Found in industrial plants, data centers, and commercial buildings for hot/cold water systems, heat exchanger circuits, and HVAC terminal control. Provides precise modulation to improve energy efficiency and system responsiveness.

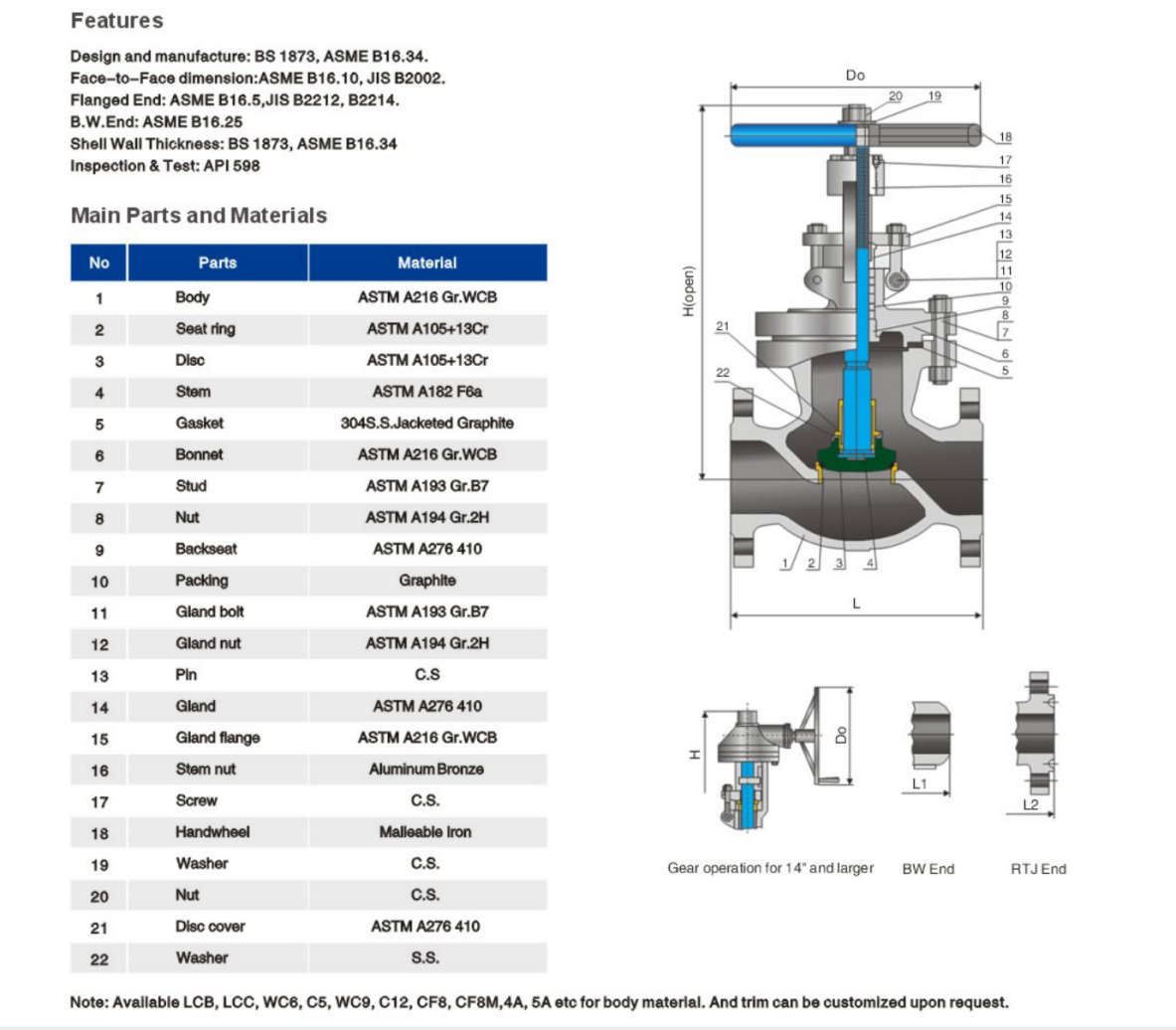

- Valve structure diagram

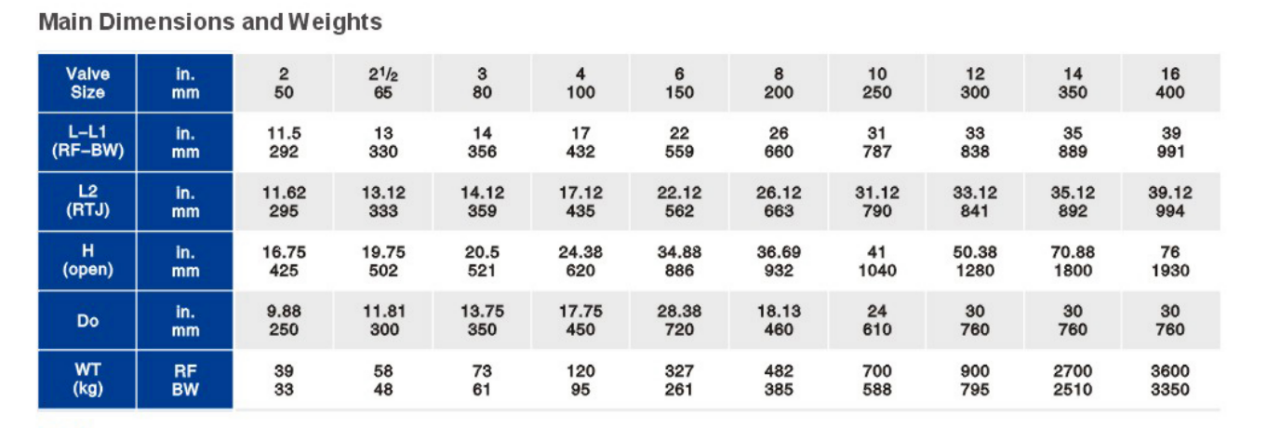

600LB

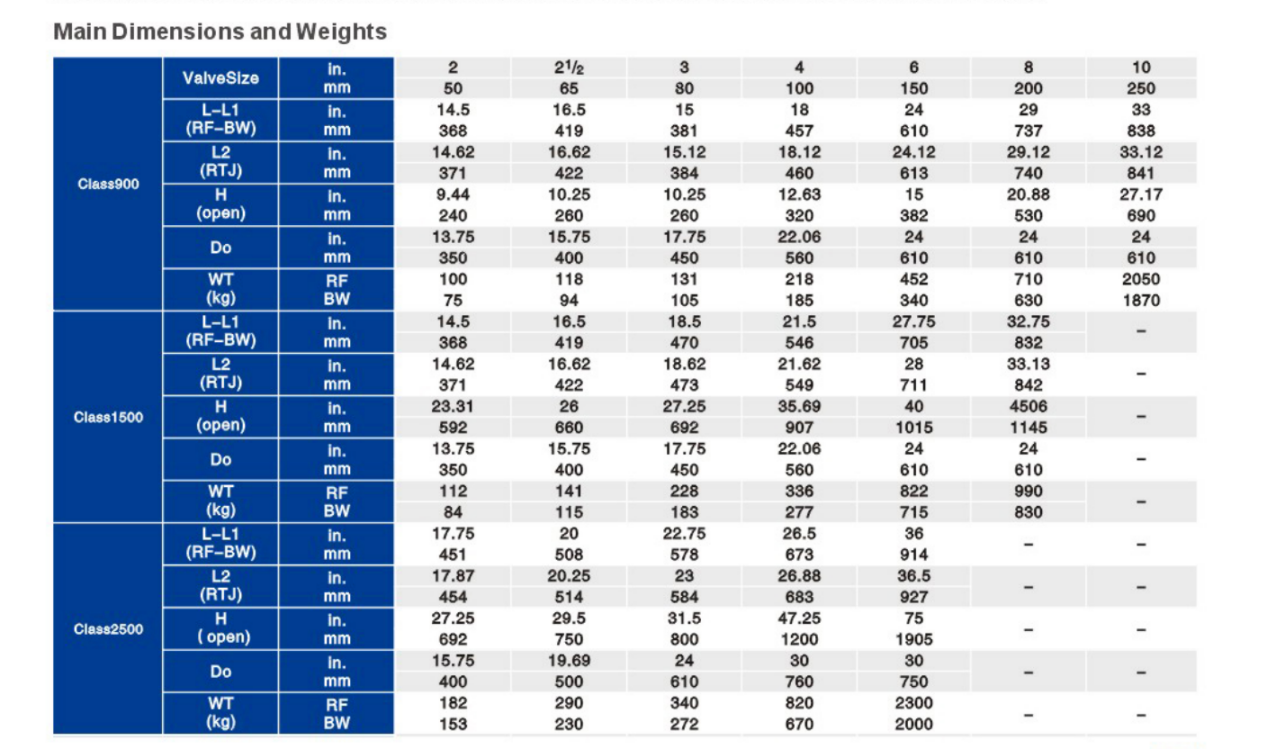

900LB-1500LB
- Valve size data sheet

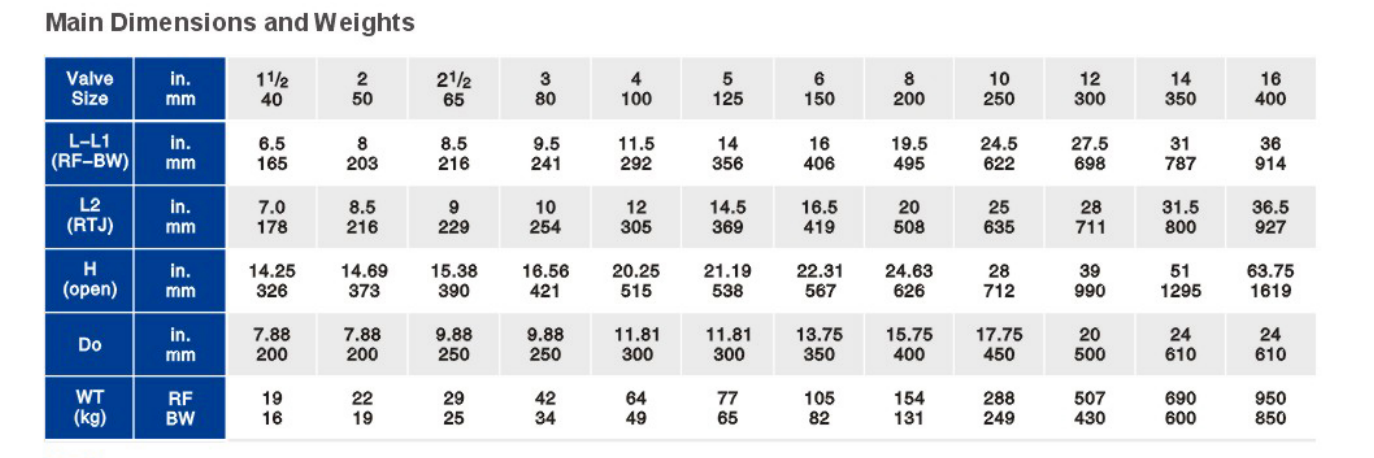

150LB

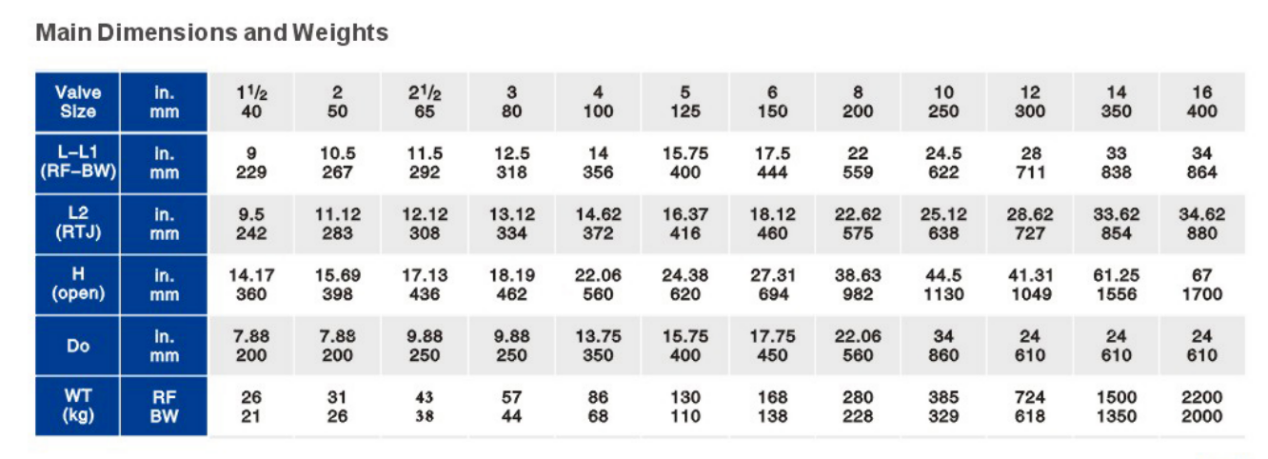

300LB
Testing Process
From raw materials to finished products, NORITE maintains 100% testing coverage, ensuring that every valve and pump you receive is built to last — safe, stable, and globally certified.
Pressure Testing
Each valve undergoes rigorous pressure and hydrostatic testing prior to shipment to verify body strength, sealing integrity, and pressure stability—ensuring zero leakage and long-term reliability in field operation.
Torque and Functional Testing
Confirming operating performance and precision.
Cycle Life Testing
Simulating long-term use under real working conditions.
Coating & Corrosion Resistance Testing
Validating surface protection and durability.
Dimensional & Material Analysis
Using spectrometers and coordinate measuring machines (CMM) for accuracy.
Traceability - Unique product code
Each product leaving our factory is accompanied by a full inspection report and a unique serial number, enabling full traceability and lifetime quality tracking.
Real Project Cases
Proven performance in critical applications worldwide – see our valves in action
Valve Solution for Carbon Black Plant in Singapore
- Singapore
Customer/Owner: Carbon Black Plant in Singapore
- Working conditions/Challenges:
GEIH is a company dedicated to efficient energy and chemical material production. Their carbon black production line operates at extremely high temperatures, with some sections exceeding 425°C. The client needed a reliable valve control solution to ensure process stability and precise automated feeding in such harsh conditions.
- The type of equipment adopted:
We supply stainless steel gate, knife gate, ball, and other valves designed for reliable operation in high-temperature environments. For process pipelines operating above 425 °C, the valve structure and sealing materials are optimized to ensure stable performance and long service life under high-temperature and frequent operating conditions.
Key indicators: We also provide customers with intelligent electric actuators to achieve precise feeding control, assist customers’ production lines in realizing intelligent management, and improve system response speed and production line efficiency. Currently, we are cooperating with the GEIH engineering team to provide full-process valve design and selection services for its new production line, including technical parameter confirmation, selection suggestions, layout guidance, etc.
Achievements/advantages: The first batch of high-temperature valves has been supplied and put into operation.Customer feedback indicates good stability, and the operational efficiency of the production line has significantly improved. We are currently in the in-depth advancement stage of the new production line project and plan to introduce more intelligent control valves into the core sections.
