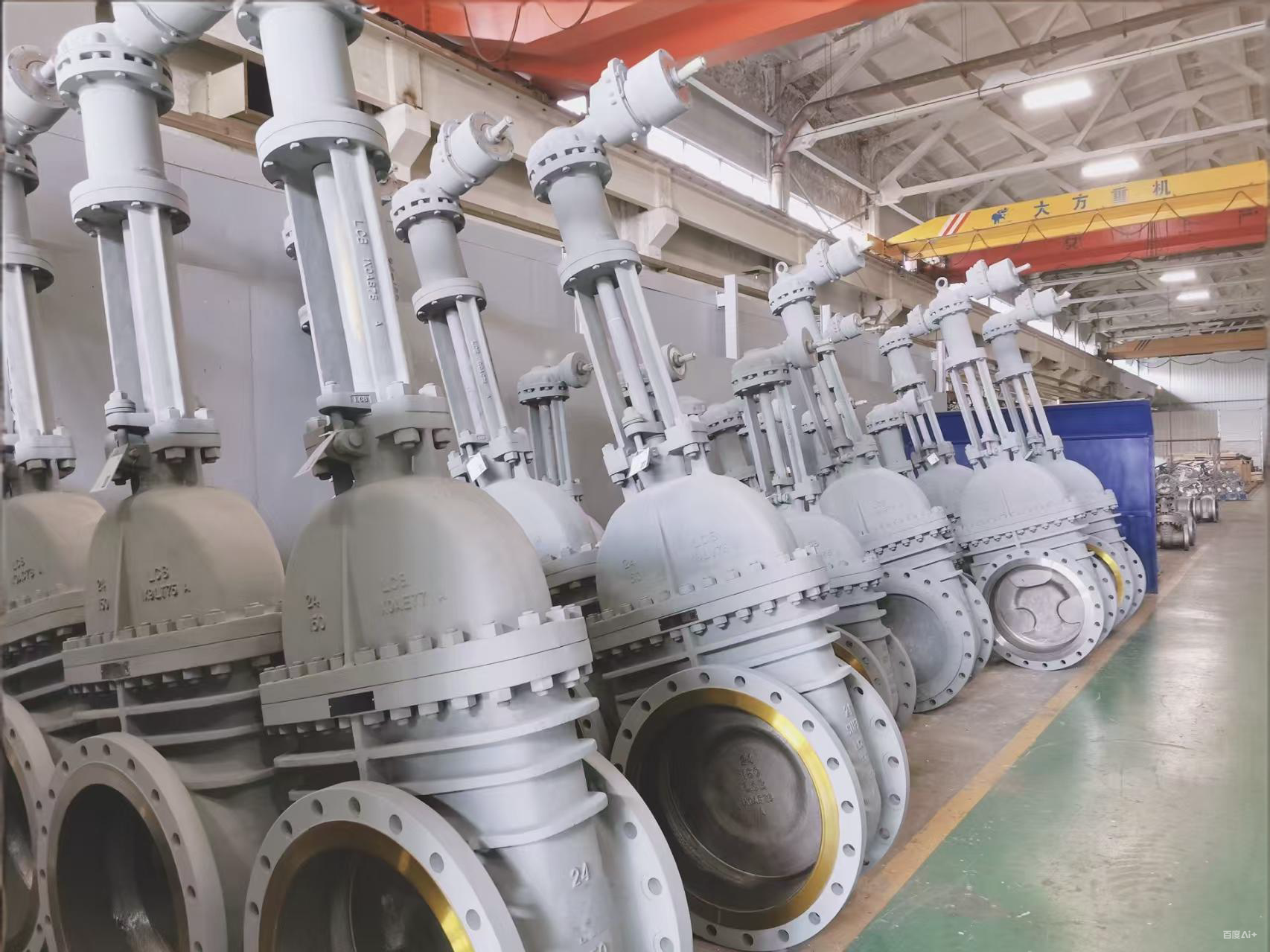

API Gate Valve
API Standard Compliance for Assured Quality
Designed and manufactured in strict accordance with API 600, API 6D, and other international petroleum and gas standards, ensuring stable quality and reliable performance under demanding industrial conditions.
Robust Structure for High-Pressure & High-Temperature Conditions
Constructed with forged or cast steel of high strength, providing excellent pressure resistance, high-temperature tolerance, and corrosion resistance for oil, gas, and power applications.
Full-Bore Design with Minimal Pressure Loss
The unobstructed flow path ensures minimal pressure drop, maintaining full flow capacity and improving overall system efficiency.
Superior Sealing for Zero Leakage
Features wedge gate design with metal-to-metal sealing or graphite packing, ensuring long-term leak-tight performance.
Wide Application Across Multiple Industries
Widely used in natural gas pipelines, petrochemical plants, power stations, and municipal water systems, offering excellent versatility and reliability.
Need custom specifications? Our engineers are ready to help.
Call: +86 15090163952 | Email: lisa@noritesolution.com
Proven Results That Drive Your Bottom Line
Real performance data from our Valve installations across critical industries worldwide
100% Pressure Tested
Tested under Class A sealing standard, across 10,000+ units.
20+ Years Lifespan
Proven performance in seawater, wastewater, and high-pressure pipelines.
8,000+ Valves Installed
Including power plants, municipal water systems, and industrial zones.
99.5% On-Time Delivery
Backed by lean production and strict QC.
Certifications & Standards
Technical Specifications
Engineered for optimal performance across a wide range of industrial applications
Model:
Size Range:
Z41H,Z45H,Z941H,Z541H
DN15 – DN1200,1/2”-48”
Pressure Rating:
Standards:
150LB- 2500LB
API 600, API 6D
Media:
Max Temperature:
Water, Oil, Gas
Body Material:
Wedge Material:
A216 GR.WCB, Alloy steel, SS304, SS316
A216 GR.WCB, Alloy steel, SS304, SS316
Stem Material:
Sealing:
Stainless steel
Stainless steel
Connection:
Certifications:
Flanged to ASME B16.5,ASME B16.47
- Application Conditions
Oil & Gas Transmission Pipelines
Ideal for long-distance transmission of natural gas, crude oil, and refined petroleum products, featuring high pressure, temperature, and corrosion resistance
Refineries & Petrochemical Process Systems
Used in cracking, distillation, desulfurization, and reaction systems under high-temperature and high-pressure conditions.
Power Generation Steam Systems
Applied in steam mainlines and auxiliary bypass systems in power plants, capable of withstanding frequent operations and harsh conditions.
Offshore Platforms & FPSOs
Used for isolating fluids and gases on offshore oil rigs and FPSOs with excellent corrosion resistance.
Municipal Infrastructure & Industrial Facilities
Suitable for large-diameter utility water systems, chemical transfer lines, cement plants, and more.
- Valve structure diagram
- 600LB
- 900LB-1500LB

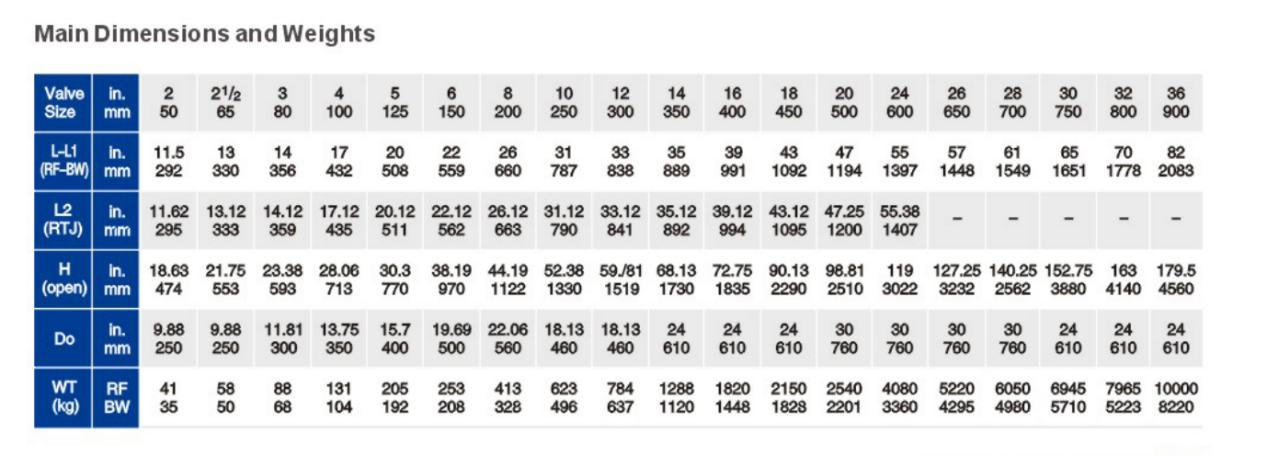

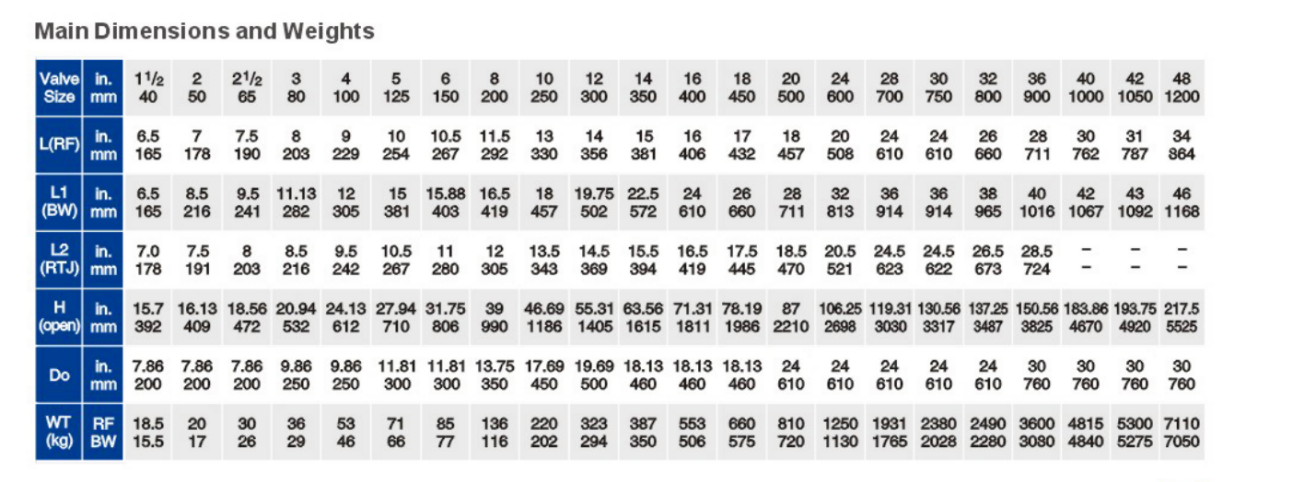

- Valve size data sheet
- 150LB
- 300LB
Testing Process
From raw materials to finished products, NORITE maintains 100% testing coverage, ensuring that every valve and pump you receive is built to last — safe, stable, and globally certified.
Pressure Testing
Each valve undergoes rigorous pressure and hydrostatic testing prior to shipment to verify body strength, sealing integrity, and pressure stability—ensuring zero leakage and long-term reliability in field operation.
Torque and Functional Testing
Confirming operating performance and precision.
Cycle Life Testing
Simulating long-term use under real working conditions.
Coating & Corrosion Resistance Testing
Validating surface protection and durability.
Dimensional & Material Analysis
Using spectrometers and coordinate measuring machines (CMM) for accuracy.
Traceability - Unique product code
Each product leaving our factory is accompanied by a full inspection report and a unique serial number, enabling full traceability and lifetime quality tracking.
Real Project Cases
Proven performance in critical applications worldwide – see our valves in action

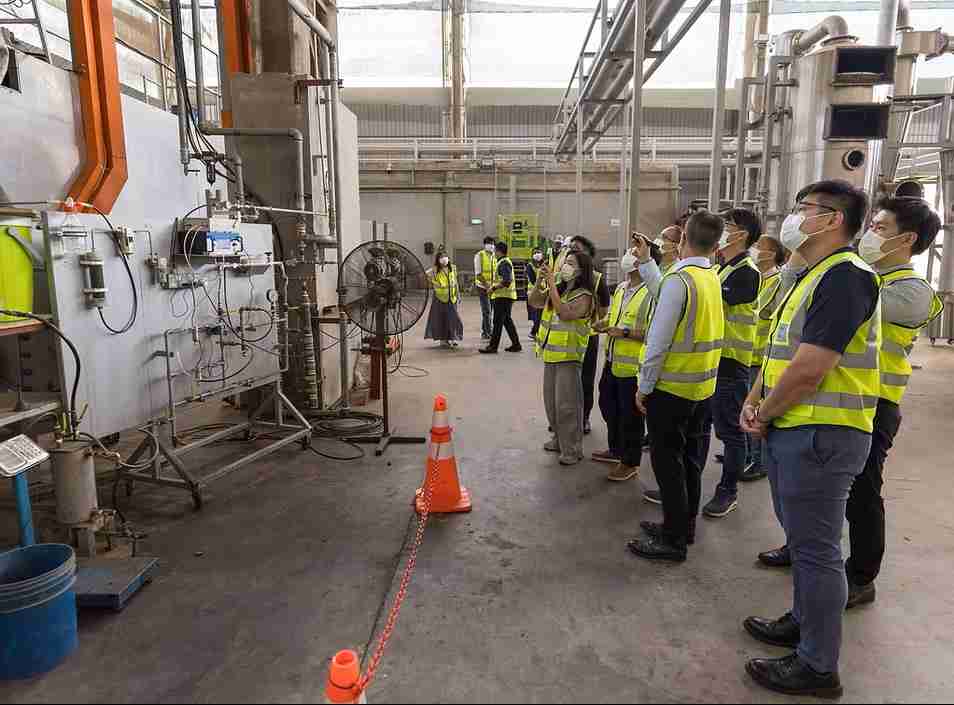

Valve Solution for Carbon Black Plant in Singapore
- Singapore
Customer/Owner: Carbon Black Plant in Singapore
- Working conditions/Challenges:
GEIH is a company dedicated to efficient energy and chemical material production. Their carbon black production line operates at extremely high temperatures, with some sections exceeding 425°C. The client needed a reliable valve control solution to ensure process stability and precise automated feeding in such harsh conditions.
- The type of equipment adopted:
We supply stainless steel valves that perform reliably under high temperatures, including gate valves, knife gate valves, and ball valves. For pipelines operating above 425°C, we have optimized valve structures and selected advanced sealing materials to ensure stable performance and long service life, even under high-temperature and high-frequency operation.
Key indicators: We also provide customers with intelligent electric actuators to achieve precise feeding control, assist customers’ production lines in realizing intelligent management, and improve system response speed and production line efficiency. Currently, we are cooperating with the GEIH engineering team to provide full-process valve design and selection services for its new production line, including technical parameter confirmation, selection suggestions, layout guidance, etc.
Achievements/advantages: The first batch of high-temperature valves has been supplied and put into operation.Customer feedback indicates good stability, and the operational efficiency of the production line has significantly improved. We are currently in the in-depth advancement stage of the new production line project and plan to introduce more intelligent control valves into the core sections.
